Overview

Dimensions

1400 × 760 × 1430 mm

Suction

1"5/8

Liquid

7/8"

Discharge

7/8"

Receiver volume

40.0 L

Power supply

380-420V/3/50Hz+N

Family

BRI DUO CO

Compressor

Compressor model R404A

ZB30KCE-TFD

Compressor model R22

ZBD30KCE-TFD

Number of compressors

2

Technology

Scroll

Manufacturer

Copeland

Electrical

Power supply

380-420V/3/50Hz+N

Max current

15.8 A

Start current

54.0 A

Sound power

73.0 dB(A)

Sound power (condenser)

—

Sound power (compressor)

—

Dimensions

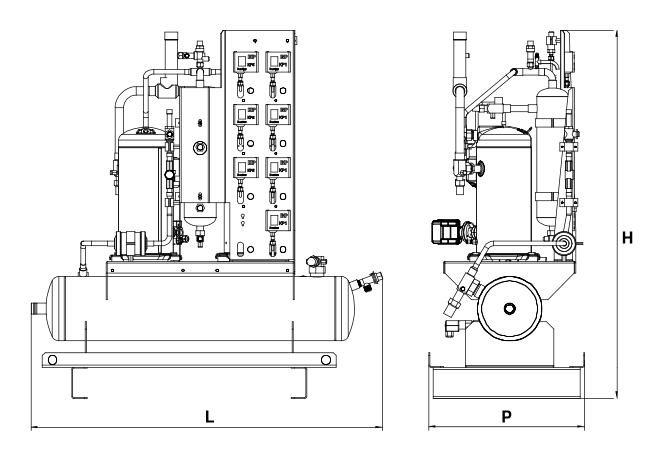

Dimension drawing — all measurements in mm

Ref	Dimension	Value
L	Length (overall)	1400 mm
P	Width / Depth	760 mm
H	Height (overall)	1430 mm
Wt	Weight	470.0 kg
