Overview

Dimensions

1195 × 718 × 1504 mm

Suction

1"5/8

Liquid

7/8"

Discharge

7/8"

Receiver volume

18.0 L

Power supply

380-420V/3/50Hz+N

Family

BRI DUO CU

Compressor

Compressor model R404A

ZB57KCE-TFD

Compressor model R22

ZBD57KCE-TFD

Number of compressors

2

Technology

Scroll

Manufacturer

Copeland

Electrical

Power supply

380-420V/3/50Hz+N

Max current

28.1 A

Start current

118.2 A

Sound power

100.0 dB(A)

Sound power (condenser)

72 dB(A)

Sound power (compressor)

73 dB(A)

Dimensions

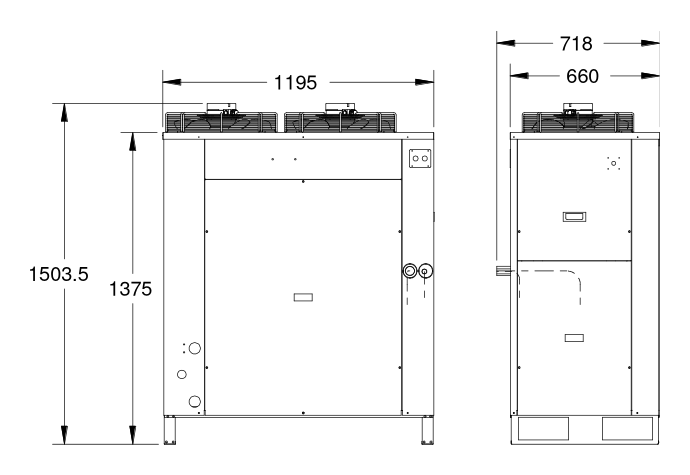

Dimension drawing — all measurements in mm

Ref	Dimension	Value
L	Length (overall)	1195 mm
P	Width / Depth	718 mm
H	Height (overall)	1504 mm
Wt	Weight	310.0 kg
